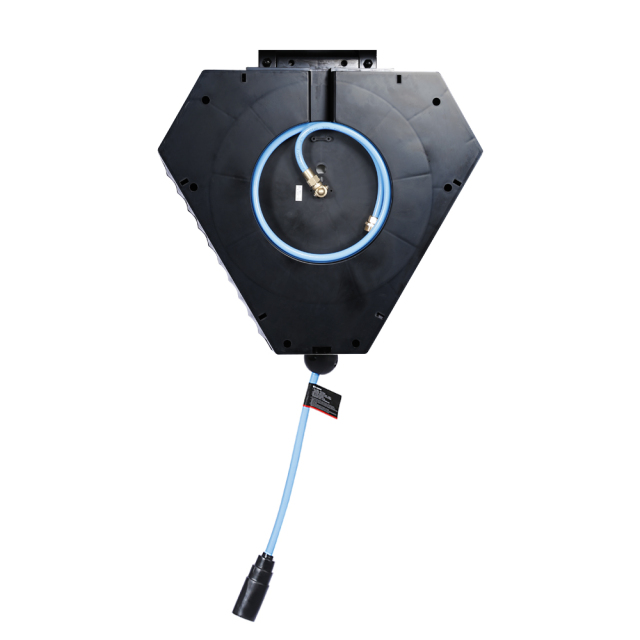

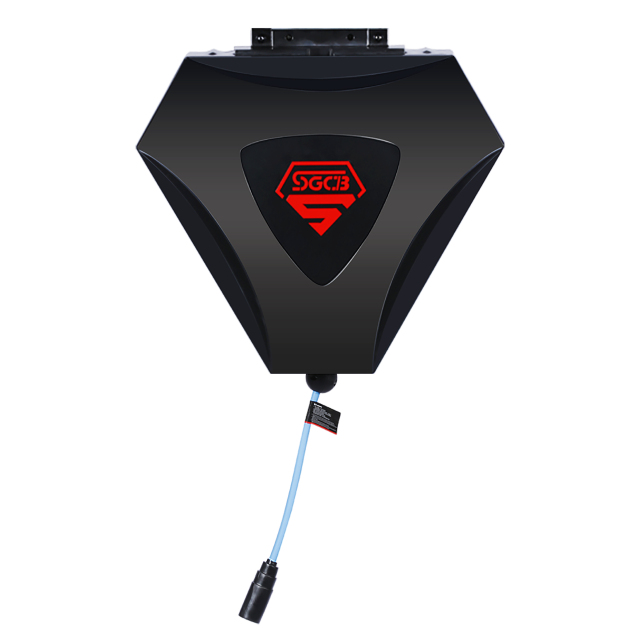

SGCB Modular Water Hose Reel Auto Cleaning Modular Normal Pressure
No.SGGF155 & SGGF145
SGCB's SGGF145 Modular Hose Reel features easy installation, high durability, and efficient space use. It's designed for professional car detailing with advanced ABS engineering plastic.

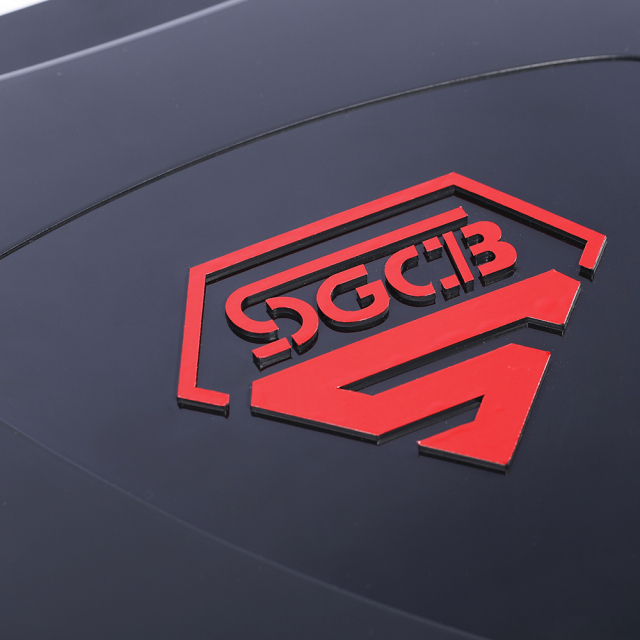

ABS engineering-grade housing features high density, high strength, wear resistance and durability
Durable Pipe
Select polyether TPU laminated yarn tubes ( three layers) achievescorrosion resistance, explosion-proof, wear resistance ,high-temperature resistance and cold resistance.
Reposition In Second
Steel painted spring, durable and with neatly arranged inner pipes, makes automatic positioning/repositioning easy. Official over 10,000 pull tests pasted.
Long Life Span
Use copper axles, comply with national standards, make the lifespan longer.
Application Scenarios
Electric hose reel:
Automatically retract the wires, provide waterproof power supply, and avoid the risks of messy wires, tripping and electric shock.
Air hose reel:
Conveys compressed air, used for water blowing and dust removal, as well as driving pneumatic tools.
Water hose reel:
Normal pressure water supply/cleaning agent, suitable for fine cleaning, the water output is gentle and does not damage the paint.
Dual pipe hose reel:
Dual-tube transportation of car wash liquid and air, combined with a foaming gun for efficient foam production.
High-pressure hose reel:
Connected to the high-pressure car wash machine, it provides high-pressure water flow to wash away heavy dirt and sand.

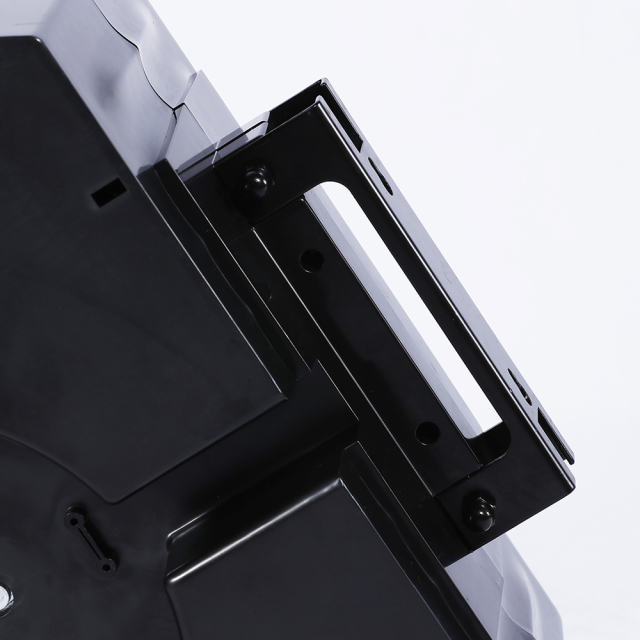

Single reels can be hung or attached to the wall. Reels can be interlocked and linked to form freely combinable modules, and both sides can be covered by end covers.
10 meters refers to that part of the length？
A 1-meter-long fixed-length inlet pipe at the top, an 8-meter-long pipe wound inside, and a 1-meter-long outlet pipe suspended from the bottom.
Can the pipe be lengthened？
The bottom suspended outlet pipe can be extended by 5 meters, making the main pipe 15 meters long.
Is the water pipe normal pressure water or high pressure water?
Normal pressure water for the water hose reel and dual pipe hose reel. High pressure water for the high pressure hose reel.
What are the options for electric drums?
Dual-wire model without ground wire and three-wire model with ground wire.
Is the plug of the electric hose reel fixed?
Plugs and sockets that meet Chinese standards（Type I), European standards(Type F), American standards(Type B) and British standards(Type G) are available for selection.
